Wire Saw Machine (B2B003)

• Place of Origin:

   China

• Type:

  Quarrying and Earthmoving Machinery

• Genre:

  Machinery & Equipment

• sCode:

  STPR1282568

• Place of Origin:

  China

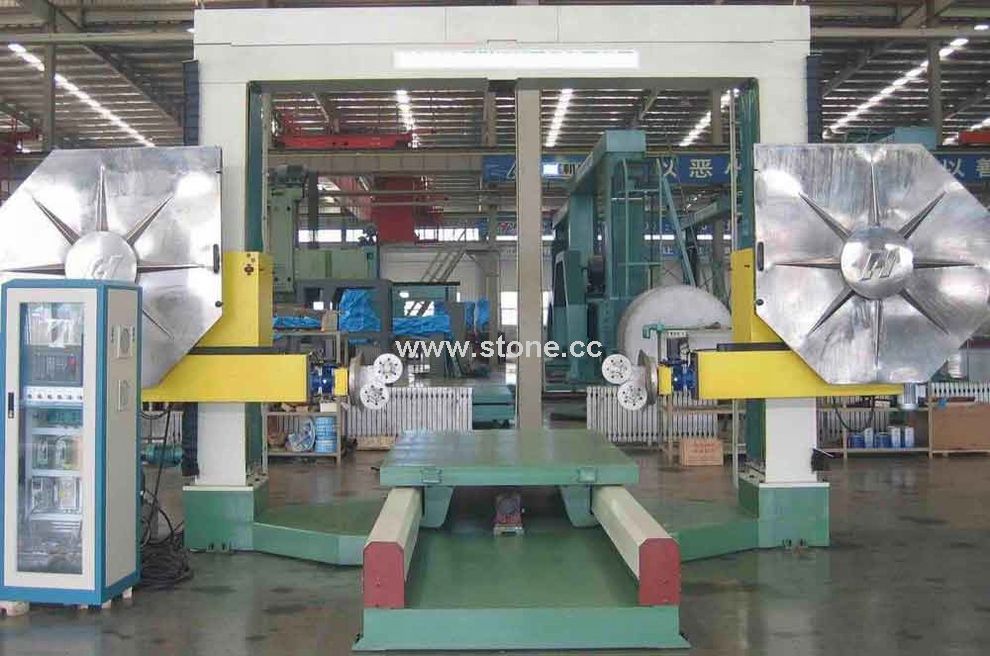

• The numerical control wire sawing machine is the dedicated equipment of irregular stone, this equipment is suitable for the marble, the granite, the artificial marble, the concrete board, and other special plane and French curve, and it is suitable specially for the major diameter circular arc board processing.

  The Main characteristic as following:

  (1)The automaticity is high. The electrical control has used the computer numerical control technology, the main heading used servo electrical machinery which has stable performance, the reliable quality and the strong power, the pressure roller rotation electrical machinery has also used the step-by-step motor.

  (2) Reasonable structure and stable operation. This machine adopts Dragon Gate gantry construction, the two sides adopt a roller-type structure flywheel movements, the elevator movement is Light flexible and smoothly

  (3)Adjusting operating convenience.

  (4)Adopting the hydraulic pressure system. And this system adopts hydraulic accumulator and hydraulic pressure relief switch, makes the machine in good tension force and easy maintenance.

  Flywheel diameter 1520mm

  Maximum vertical stroke of disc 1600mm

  Maximum depth of cutting 1500mm

  Maximum width of cutting 2000mm

  Maximum stroke of working table 3000mm

  Working table dimension 2500*1600mm

  Capacity 18Kw

  Overall dimension 7000*5500*4200mm

  Weight 8000Kg
